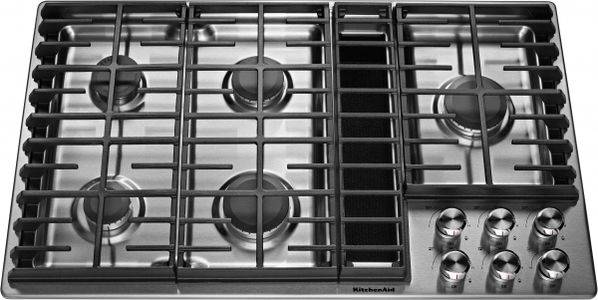

    KitchenAid® 36" Stainless Steel Gas Downdraft Cooktop


    Model #:

    KCGD506GSS


    Model #: KCGD506GSS
    102406
    KitchenAid
    $2,339.10

    At a Glance

    Product Dimensions 18.44"h x 36"w x 21.94"d

    This 36” gas cooktop includes Downdraft, an integrated ventilation system that doesn’t require a separate hood. The cooktop features a 17K BTU professional burner to achieve both high heat needed for searing and low simmer settings. The 5K BTU Even-Heat™ Simmer Burner enables precise simmering and melting while the 300 CFM exhaust rating means the venting can handle it all.Read More

    Additional Savings Available

    Sale $2,339.10

    $2,599.00

    Save $259.90

    Related items:

    People also viewed:

    Get to know this product.

    Product Overview

    Product Overview
    17K BTU Professional Burner

    Provides the ability to use high-temperature cooking methods such as searing, stir-frying, and wok cooking as well as low temperatures suitable for simmering.

    3-Speed Fan Control

    Can be precisely matched to cooking needs, effectively removing steam, grease, and odors from the air.

    Convertible to Duct-Free Ventilation

    Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.

    Electronic Ignition and Automatic Re-Ignition

    Lights burners with an electric spark instead of a pilot light. For more reliable performance, burners are relit if the flame is blown out.

    Full-Width Cast-Iron Grates

    Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.

    Downdraft Ventilation

    Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.

    Useful Documents
    Specifications

    General Specs

    ColorStainless Steel
    Fuel TypeNatural Gas
    Type BurnerSealed
    Depth (in.)21.94
    Grate MaterialCast Iron
    Height (in.)18.44
    IgnitionFlame-Sensing™ Re-ignition
    Width (in.)36
    Manufacturer Warranty1 Year Parts & Labor
    Appliance Fit Width (in.)36
    Color Finish NameStainless Steel
    ADA CompliantNo
    ENERGY STAR CertifiedNo
    Number of Elements Burner Cooking Zones5
    Commercial Use ApprovedNo
    Smart CompatibleNo
    Smart Home WifiNo
    Burner TypeSealed
    Number of Elements/Burners5
    Ignition TypeAutomatic Electronic
    Downdraft VentilationYes
    Cooktop Surface StyleGrate
    Voltage120
    Frequency60
    Amp15
    Cooktop FeaturesContinuous Grate
    Cooktop SurfaceStainless Steel

    Dimensions

    Cutout Depth 19-15/16 in
    Cutout Width 34-3/4 in

    Controls

    Knob Color Stainless Steel
    Infinite Heat Controls Yes

    Refinements

    Features Even-Heat Melt Burner , Downdraft Ventilation

    Cooktop Details

    Cooktop Surface Material Stainless Steel
    Number of Grates 3
    Power Outage Compatible Yes
    Downdraft Vent Yes
    Ignition Type Flame-Sensing™ Re-ignition
    Grate Details Matte Finish , Continuous , Cast Iron Grates

    Ventilation System

    Number of Speeds 3

    KitchenAid® 36" Stainless Steel Gas Downdraft Cooktop

    Model #KCGD506GSS
    (320)
    This 36” gas cooktop includes Downdraft, an integrated ventilation system that doesn’t require a separate hood. The cooktop features a 17K BTU professional burner to achieve both high heat needed for searing and low simmer settings. The 5K BTU Even-Heat™ Simmer Burner enables precise simmering and melting while the 300 CFM exhaust rating means the venting can handle it all.
